Three Piece Full Port Ball Valves -Series 45,Screwed End

Three Piece Full Port Ball Valves -Series 45,Screwed End

Series 45 full-port ball valves combined with pneumatic actuators features lightweight,compact,which creates a small yet efficient control package.There are many options available in complementing your electric/ pneumatic package. As for on/off or throttling services,the actuated 45 series ball valve is a precise and reliable component when matched with a positioner.

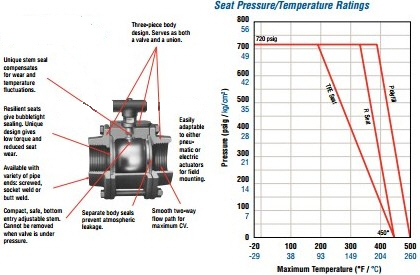

Series 45 full-port ball valves provide the best performance for packaged piping systems,which are in a position to substantially reduce maintenance and installation costs.The series 45 full-port ball valves provide blowout-proof stem,downstream seat sealing,bottom entry and low operational torque. Multiple stem seal rings and unique seat design ensure both zero leakage and positive shutoff. Series 45 full-port ball valves combined with pneumatic actuators features lightweight,compact,which creates a small yet efficient control package.There are many options available in complementing your electric/ pneumatic package. As for on/off or throttling services,the actuated 45 series ball valve is a precise and reliable component when matched with a positioner.

Main specifications for There Piece Full Port Ball Valves -Series 45 as follow:

Valve pressure rating: 720 psi

Type:There piece,full port,screwed ends
Constructions: ISO Mounting pad,blowout-proof stem,downstream seat sealing
Standards:ASME B1.20.1

Size range:1/4"~4"
